Office solutions · LED

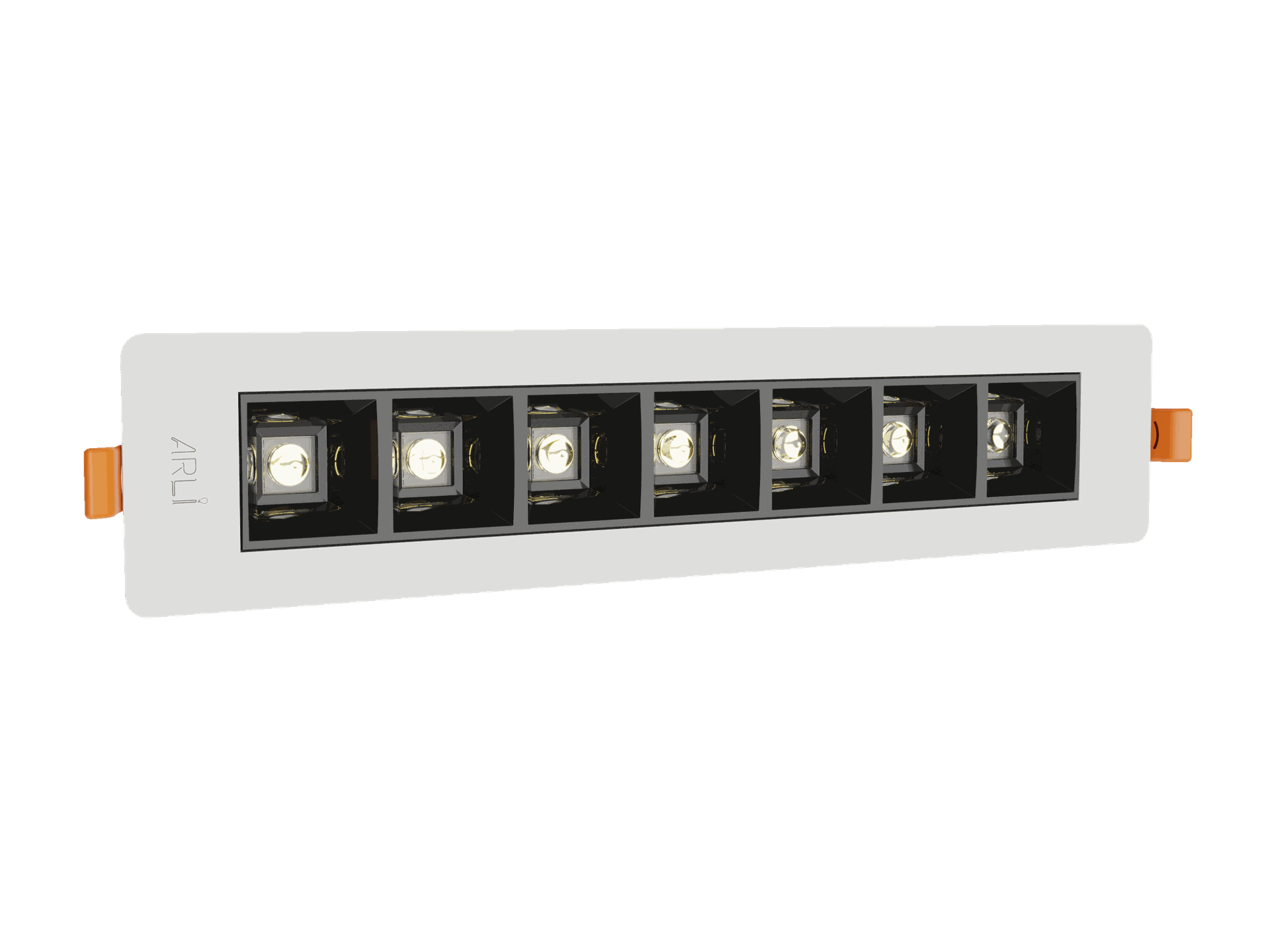

WOR-L-830-2-SYM-WH
Modern recessed lamp with excellent lighting properties. Suitable for lighting offices, corridors and design spaces. The lamp uses the most modern LED technology, which makes the lamp powerful and economical.
Technical specifications
- Light Source
- LED
- CCT
- 3000k
- CRI
- 80
- Switching type
- DALI
- Connected load
- 14.57 W
- Lumen output
- 1,329.84 lm
- Efficiency
- 91.3 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Screw terminal
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
14.57 W
Lumen output
1,329.84 lm
Efficiency
91.3 lm/W
Ripple
3 %
DALI address
1
Inrush current
4 A
Inrush time
46 μs
Optical system
Lenses
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
71.00 mm
Height
41.00 mm
Length
340.00 mm
Weight
0.75 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
1329 lm
· 14.57 W
· DALI
Housing colors
Dimmensions and light distribution
Dimmensions

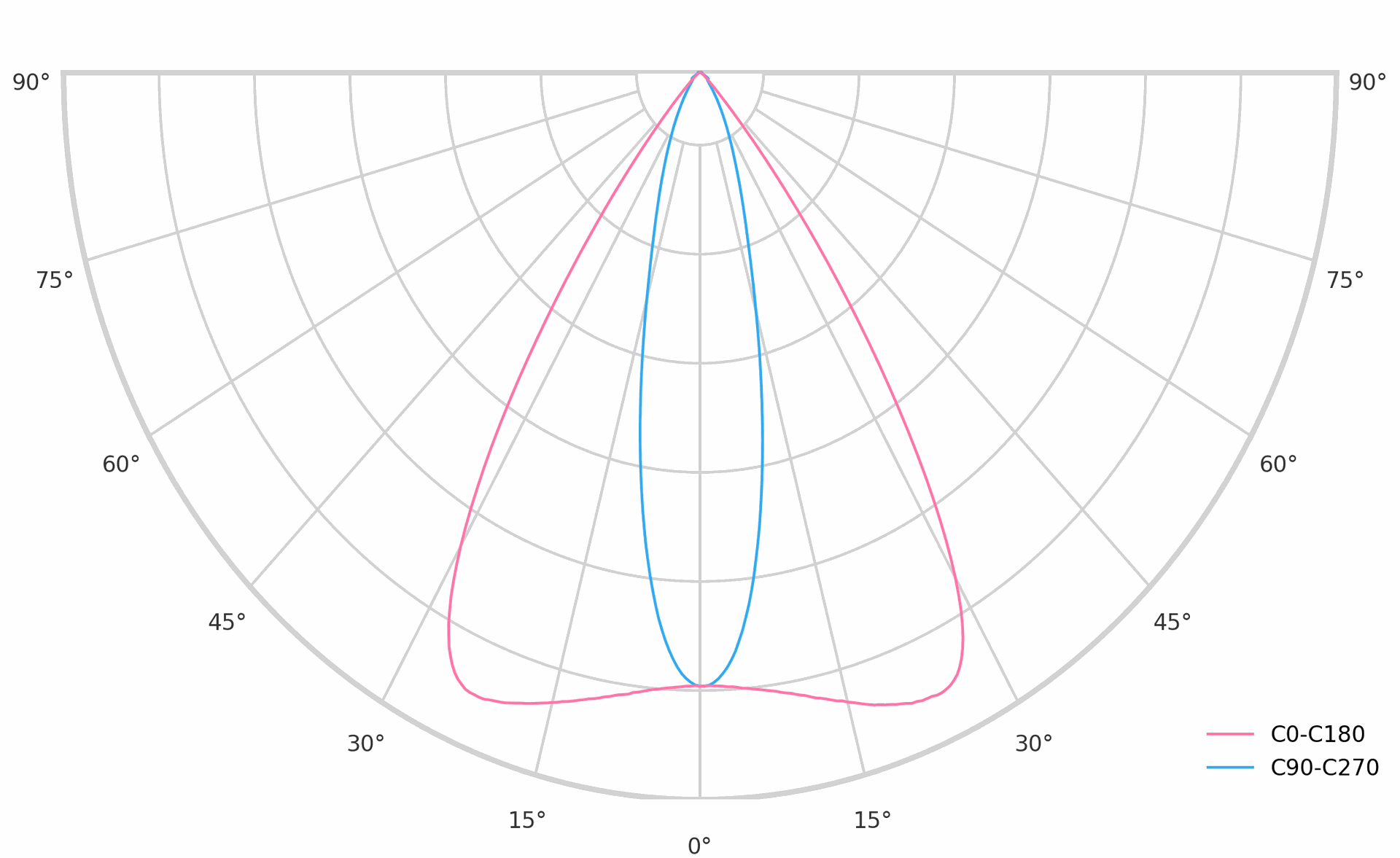

Polar curve
