Office solutions · LED
WORCOM-M-935-2-80-BL

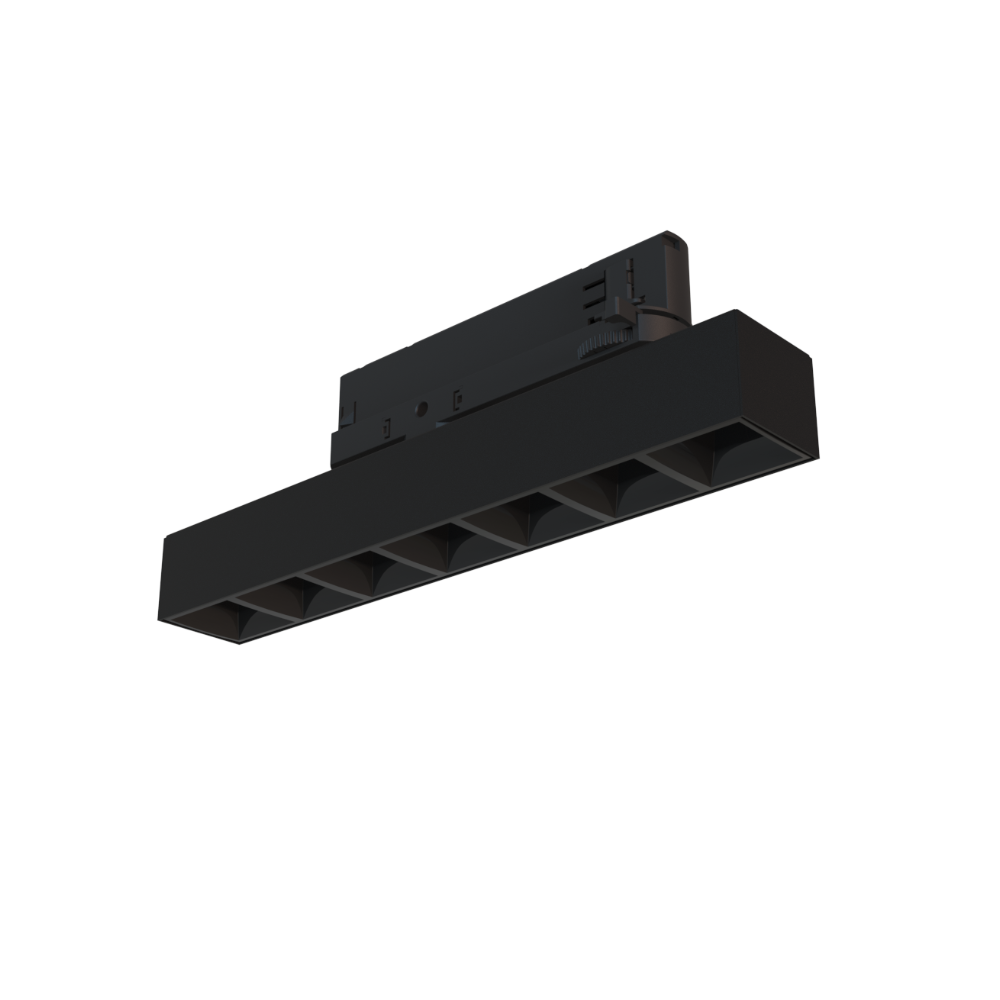

Worker Compact is a modern track LED luminaire for 3-phase system with LED source with 50,000 hours lifetime. Available in 3 power options, wide range of color temperatures (2700K-4000K) with CRI 80+/90+. Five light distribution types (50°, 80°, ASYM, SYM, WAS) and DALI control option available. Uses the most modern LED technology for powerful and economical lighting. Ideal for offices, corridors and retail spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 3500k
- CRI
- 90
- Switching type
- DALI
- Connected load
- 11.23 W
- Lumen output
- 1,120.00 lm
- Efficiency
- 99.7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3500k
CRI
90
Connected load
11.23 W
Lumen output
1,120.00 lm
Efficiency
99.7 lm/W
Ripple
1 %
DALI address
1
Standby power
0.30 W
Inrush current
10 A
Inrush time
80 μs
Optical system
Lenses
Optical part material
PMMA
Surface finish
Powder coated
Width
43.00 mm
Height
37.00 mm
Length
283.00 mm
Weight
0.45 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing colors

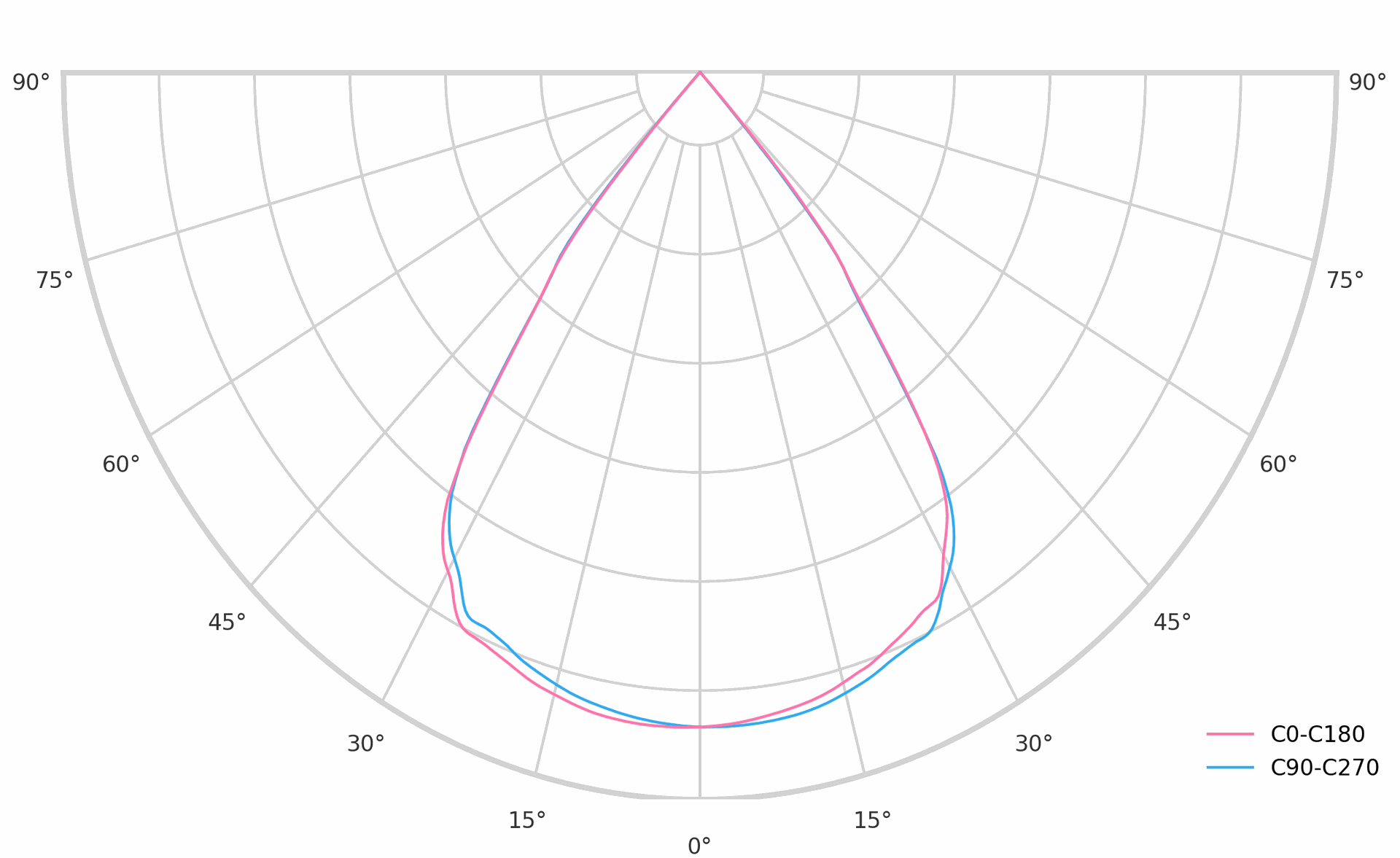

Dimmensions and light distribution
