WORCOM-S-927-1-80-BL
Technical specifications
Light Source
LED
CCT
2700k
CRI
90
Switching type
Non-dimmable
Connected load
9.42 W
Lumen output
801.85 lm
Efficiency
85.1 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3-phase track adapter
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
2700k
CRI
90
Connected load
9.42 W
Lumen output
801.85 lm
Efficiency
85.1 lm/W
Ripple
5 %
Inrush current
17 A
Inrush time
172 μs
Optical system
Lenses
Optical part material
PMMA
Surface finish
Powder coated
Width
43.00 mm
Height
37.00 mm
Length
283.00 mm
Weight
0.45 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator
Housing color

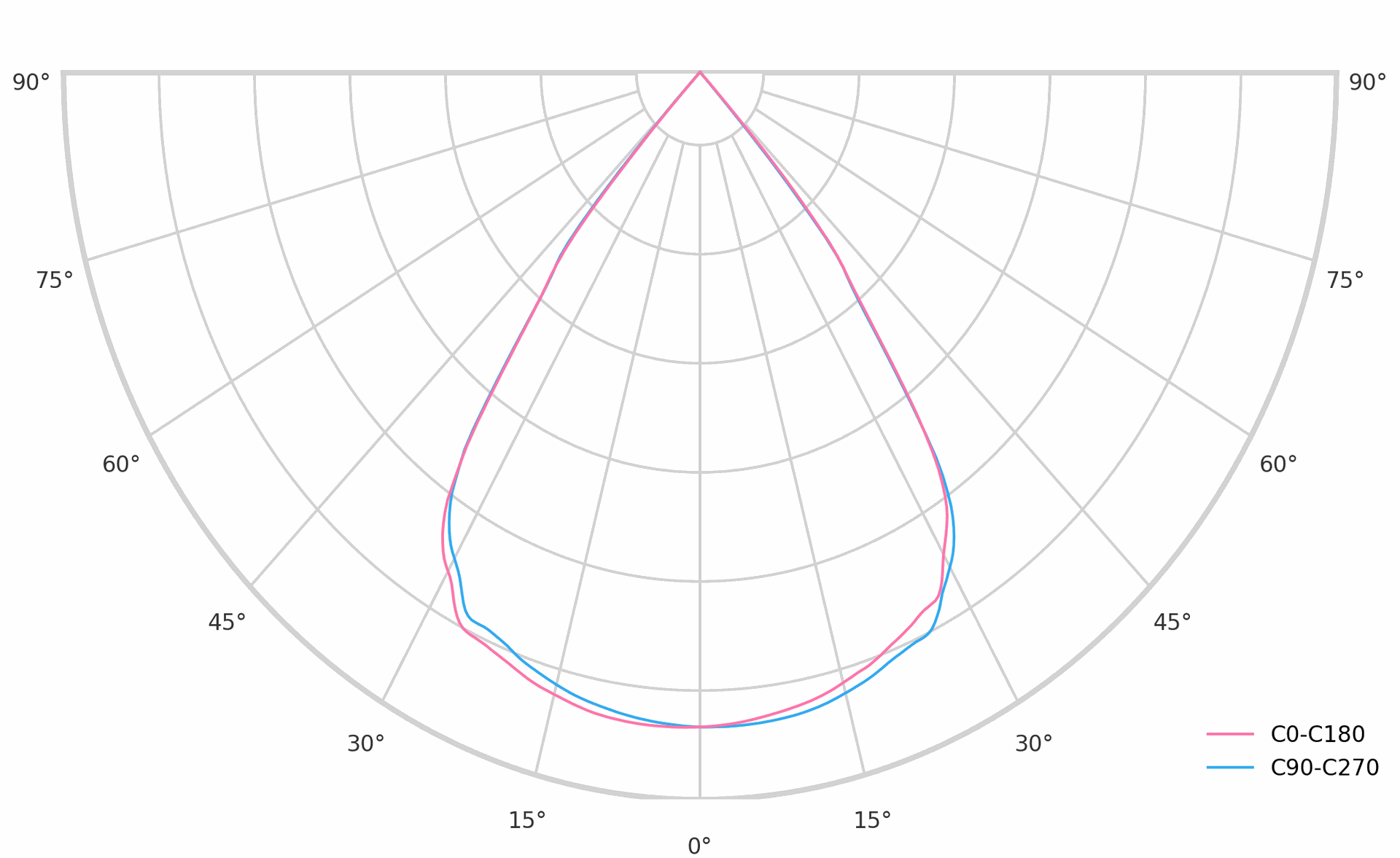

Dimmensions and light distribution
