Exterior solutions · LED

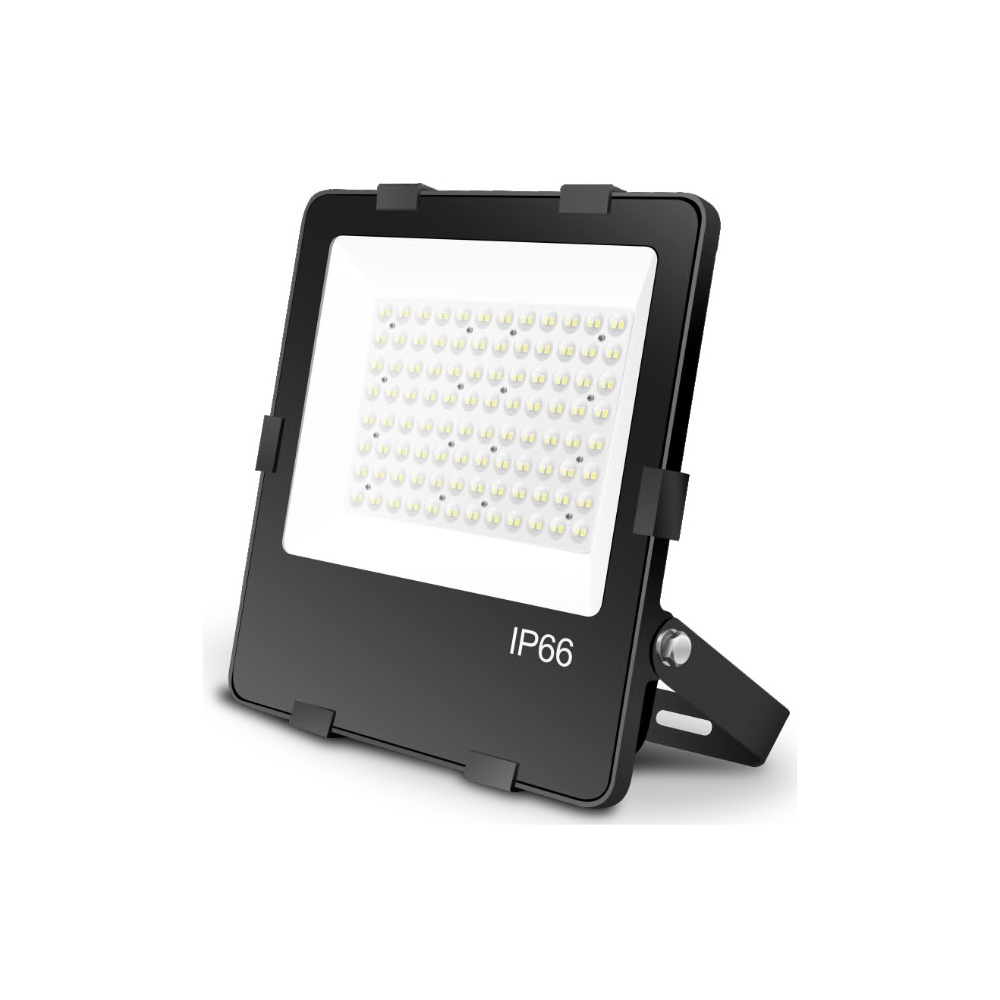

Recon-S-740
Recon is an ideal solution for most outdoor applications such as wall mounted around building facades, gardens, paths near to buildings, garages, entrance ways and drives.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 70
- Connected load
- 28.58 W
- Lumen output
- 4,138.00 lm
- Efficiency
- 144.8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
IP protection
66
Protection class
I
Ambient temperature
-30 to +35 °C
Light Source
LED
CCT
4000k
CRI
70
Connected load
28.58 W
Lumen output
4,138.00 lm
Efficiency
144.8 lm/W
Inrush current
90 A
Optical system
Lenses
Optical part material
Hardened glass
Housing material
Die-cast aluminium
Surface finish
Powder coated
Width
204.00 mm
Height
53.00 mm
Length
232.00 mm
Weight
1.10 kg
Service lifetime (L80 B10)
35 000 h
Warranty
3 years
Dimmensions and light distribution
Dimmensions

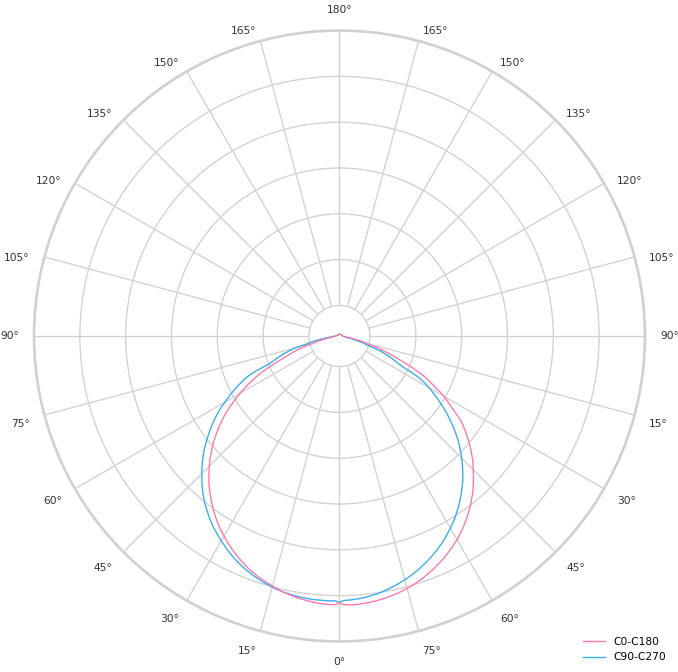

Polar curve
