Office solutions · LED
SQECO-59-840-2

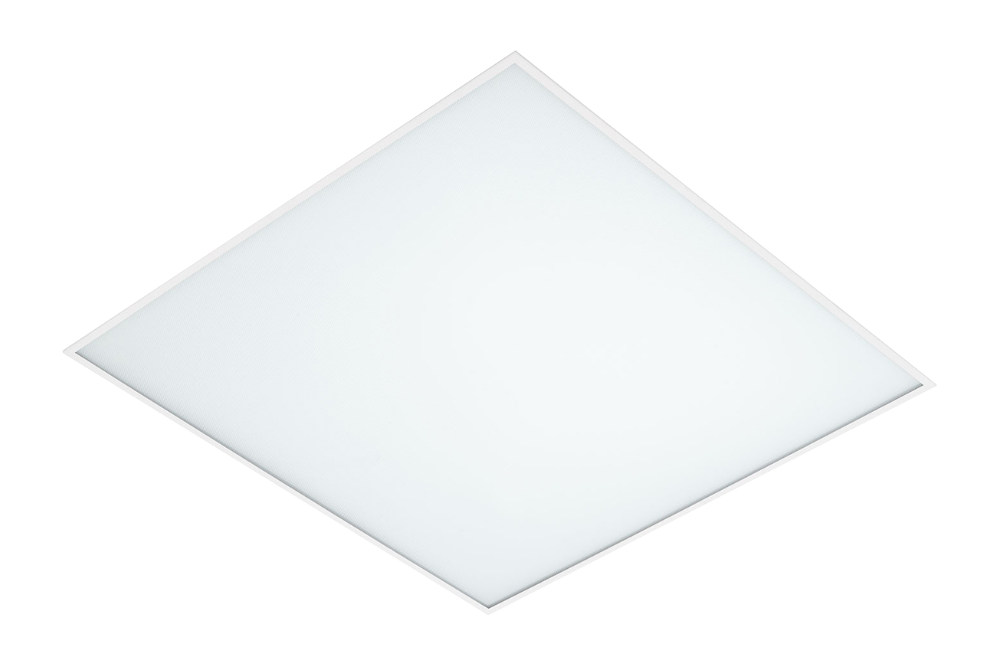

Square ECO is a 595x595 mm LED panel with state-of-the-art LED technology and LED source with 50,000 hours lifetime. Color temperature 4000K with CRI 80+ and luminous flux 4080 lm. Steel body with PMMA diffuser for optimal light distribution and DALI control option available. Fully compatible with existing lighting infrastructure. Ideal for offices, halls and commercial spaces. 5-year warranty.
Technical specifications
- Light Source
- LED
- CCT
- 4000k
- CRI
- 80
- Switching type
- DALI
- Connected load
- 34.00 W
- Lumen output
- 4,080.00 lm
- Efficiency
- 120.0 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in terminal
Switching type
DALI
IP protection
20
Protection class
II
Ambient temperature
0 to +30 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
34.00 W
Lumen output
4,080.00 lm
Efficiency
120.0 lm/W
Optical system
Diffuser
Optical part material
PMMA
Housing material
Steel
Surface finish
Powder coated
Width
595.00 mm
Height
26.00 mm
Length
595.00 mm
Weight
1.60 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 years
Illuminance Calculator

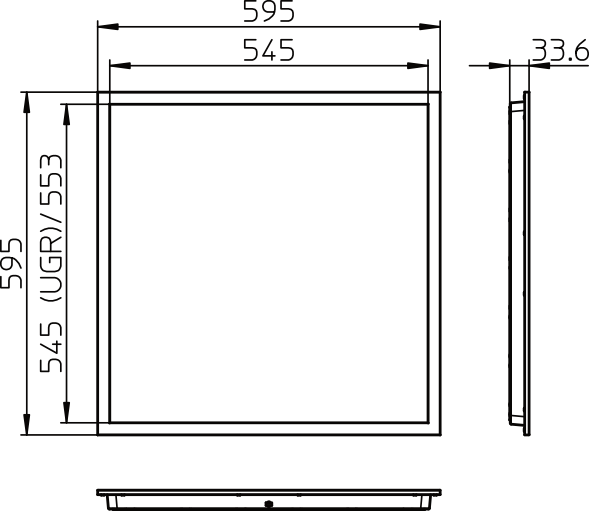

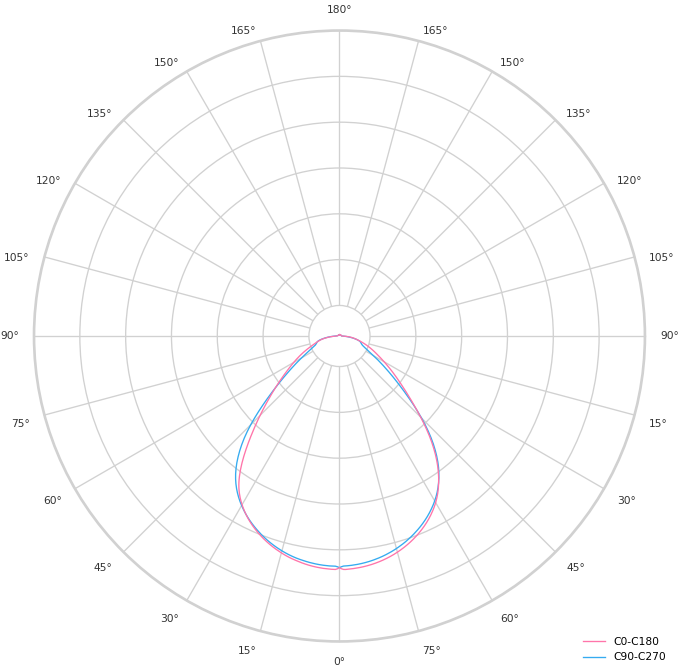

Dimmensions and light distribution
