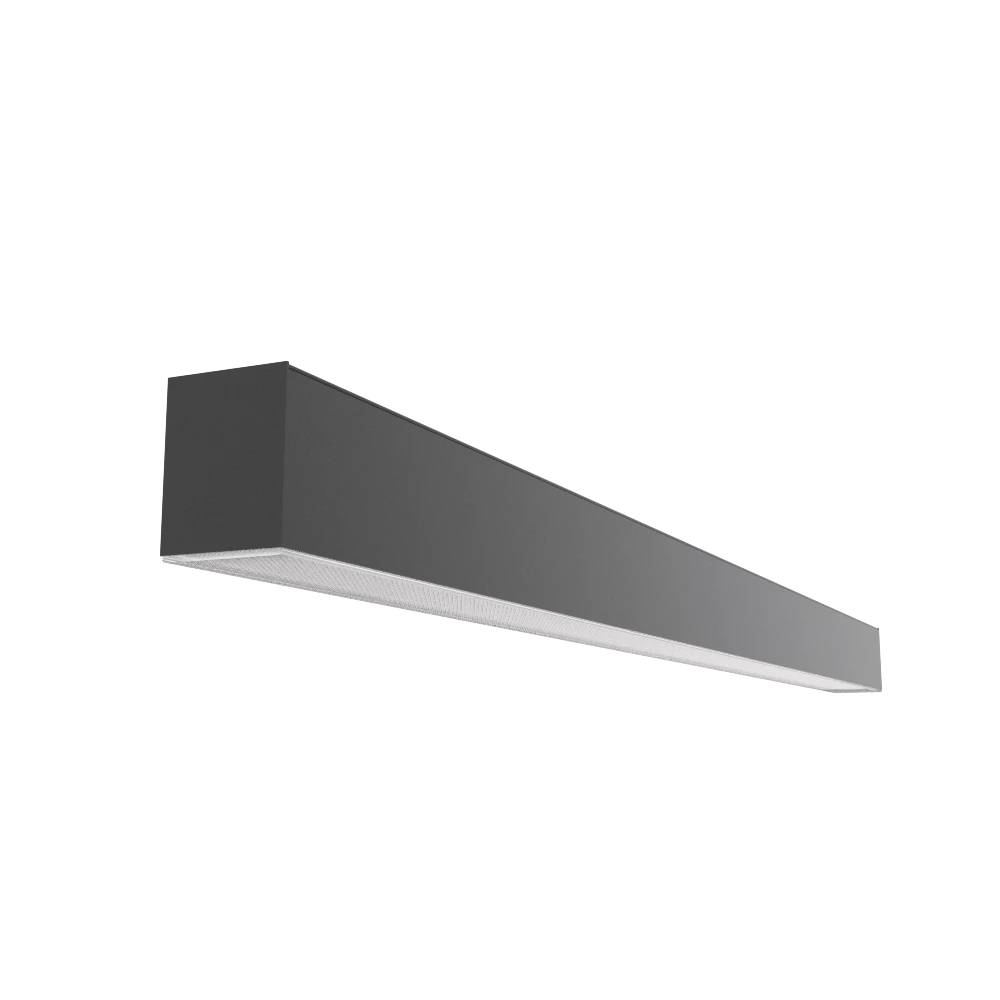

LINESUR-2258-L-830-1-BL
Technical specifications
Light Source
LED
CCT
3000k
CRI
80
Switching type
Non-dimmable
Connected load
60,01 W
Lumen output
5 627,20 lm
Efficiency
93,8 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in svorka
Switching type
Non-dimmable
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
80
Connected load
60,01 W
Lumen output
5 627,20 lm
Efficiency
93,8 lm/W
Ripple
2 %
Inrush current
18 A
Inrush time
44 μs
Optical system
Difúzor
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
50,00 mm
Height
70,00 mm
Length
2 258,00 mm
Weight
5,50 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

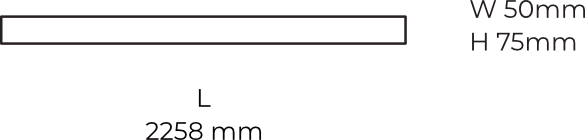

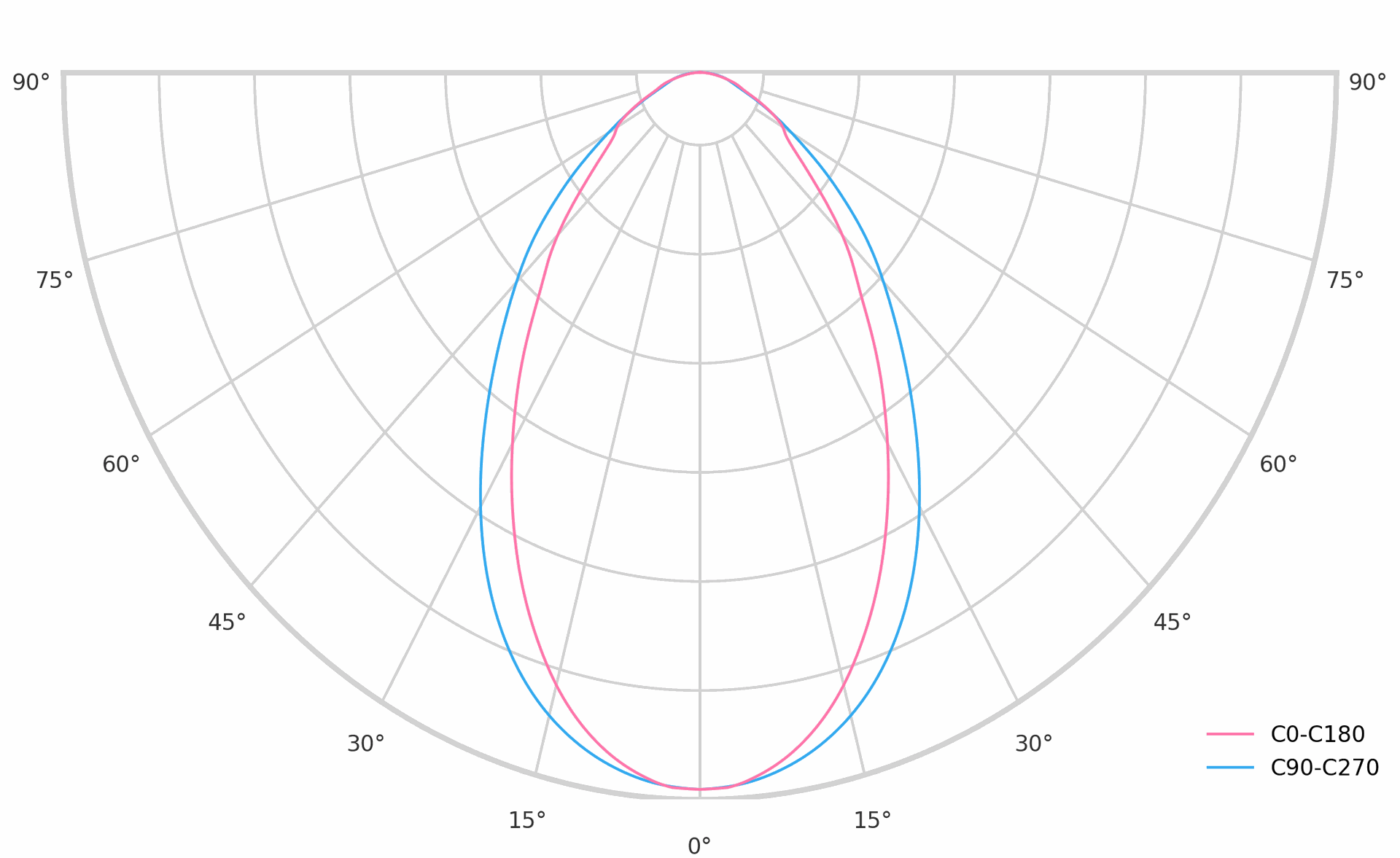

Dimmensions and light distribution
