LINESUR-1696-L-930-2-WH
Technical specifications
Light Source
LED
CCT
3000k
CRI
90
Switching type
DALI
Connected load
47,13 W
Lumen output
3 578,20 lm
Efficiency
75,9 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in svorka
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
3000k
CRI
90
Connected load
47,13 W
Lumen output
3 578,20 lm
Efficiency
75,9 lm/W
Ripple
1 %
DALI address
1
Standby power
0,50 W
Inrush current
18 A
Inrush time
180 μs
Optical system
Difúzor
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
50,00 mm
Height
70,00 mm
Length
1 696,00 mm
Weight
4,00 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

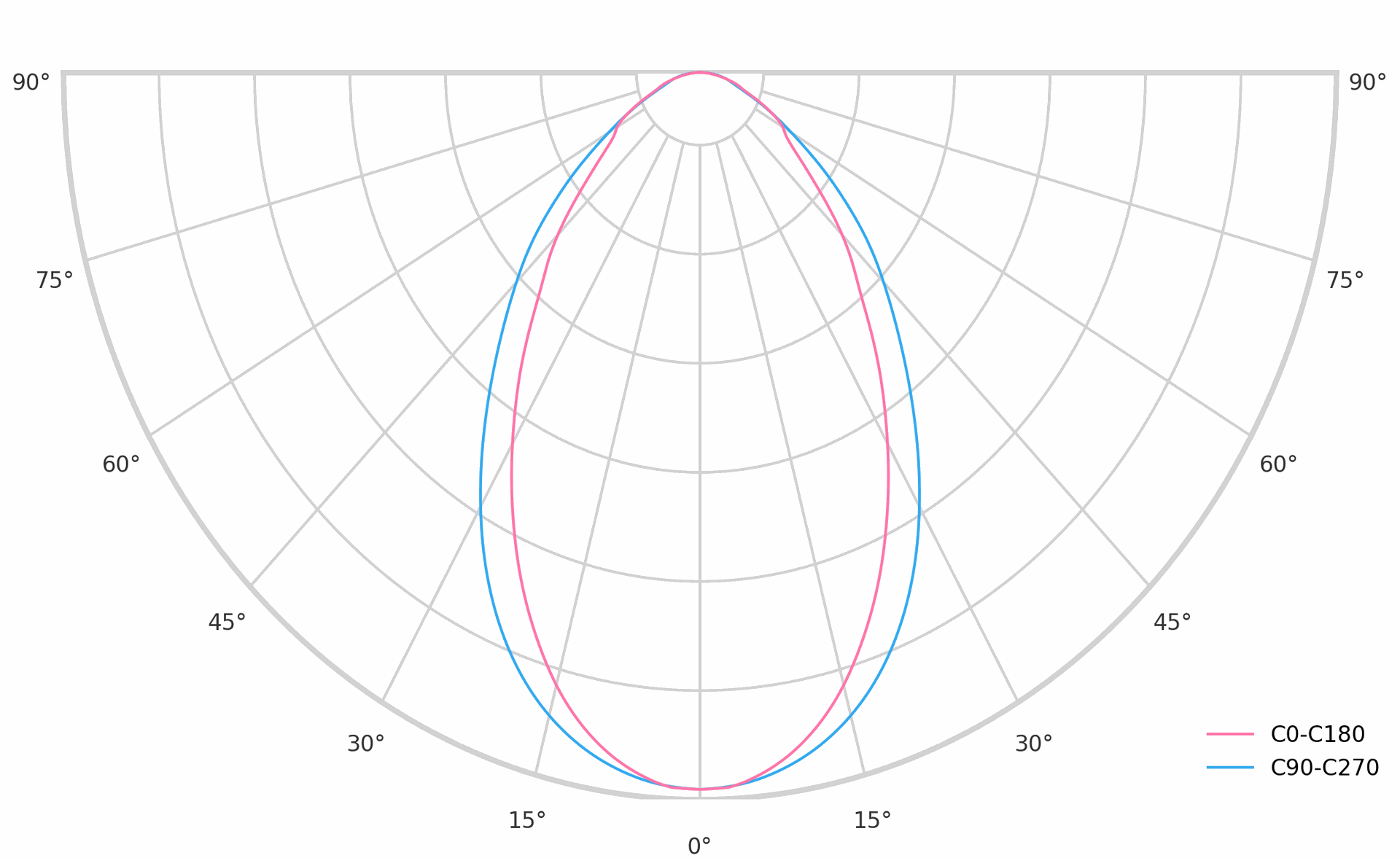

Dimmensions and light distribution
