LINESUR-1134-L-840-2-WH
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
DALI
Connected load
31,24 W
Lumen output
2 955,91 lm
Efficiency
94,6 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in svorka
Switching type
DALI
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
31,24 W
Lumen output
2 955,91 lm
Efficiency
94,6 lm/W
Ripple
1 %
DALI address
1
Standby power
0,50 W
Inrush current
18 A
Inrush time
180 μs
Optical system
Difúzor
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
50,00 mm
Height
70,00 mm
Length
1 134,00 mm
Weight
2,80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

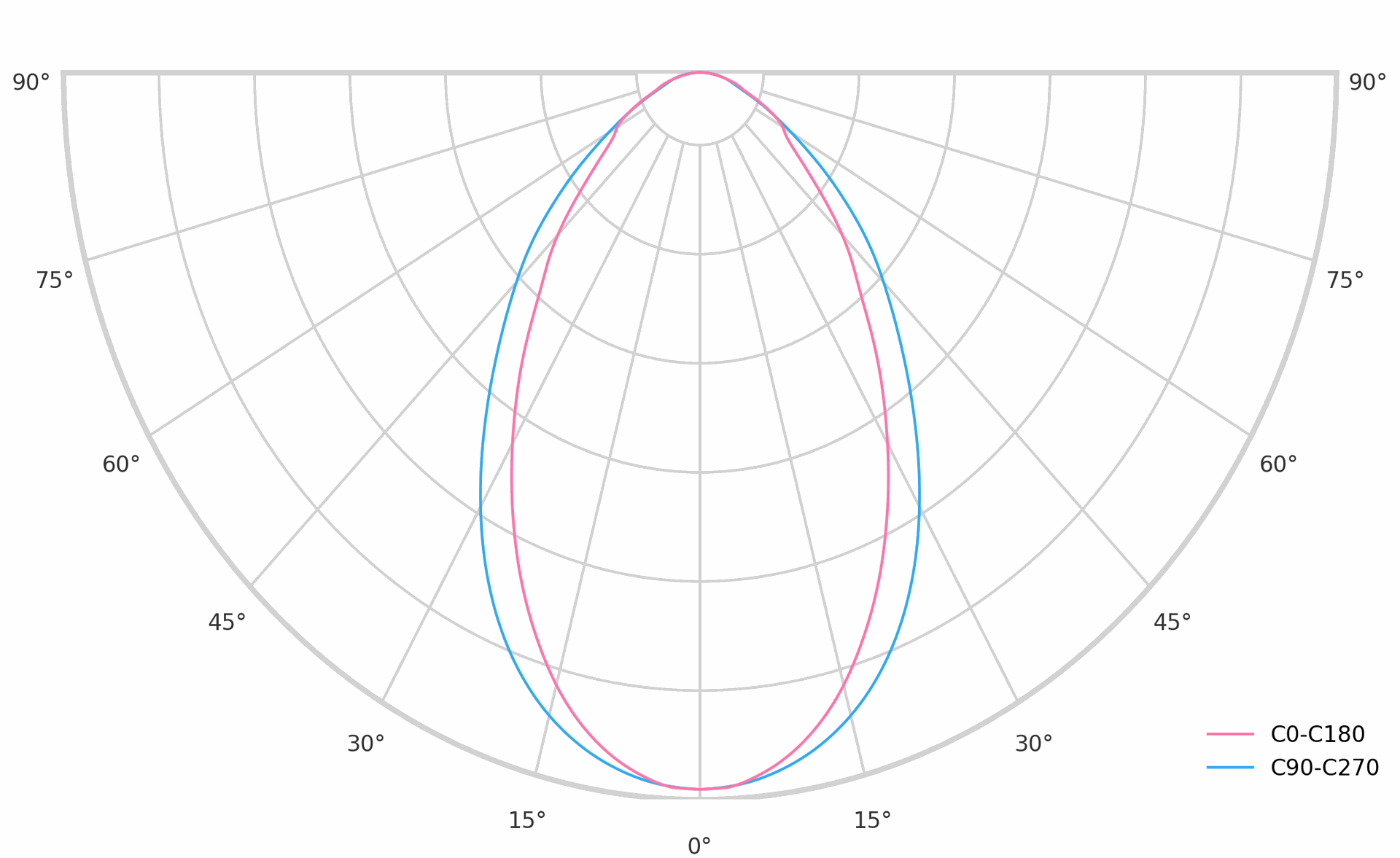

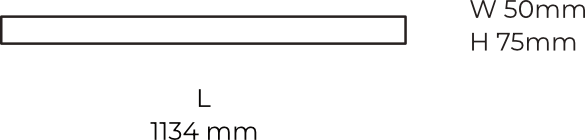

Dimmensions and light distribution
