LINESUR-572-S-840-1-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
80
Switching type
Non-dimmable
Connected load
8,07 W
Lumen output
754,35 lm
Efficiency
93,5 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Plug-in svorka
Switching type
Non-dimmable
IP protection
20
Protection class
I
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
80
Connected load
8,07 W
Lumen output
754,35 lm
Efficiency
93,5 lm/W
Ripple
3 %
Inrush current
17 A
Inrush time
118 μs
Optical system
Difúzor
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
50,00 mm
Height
70,00 mm
Length
572,00 mm
Weight
1,23 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

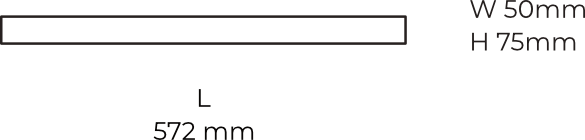

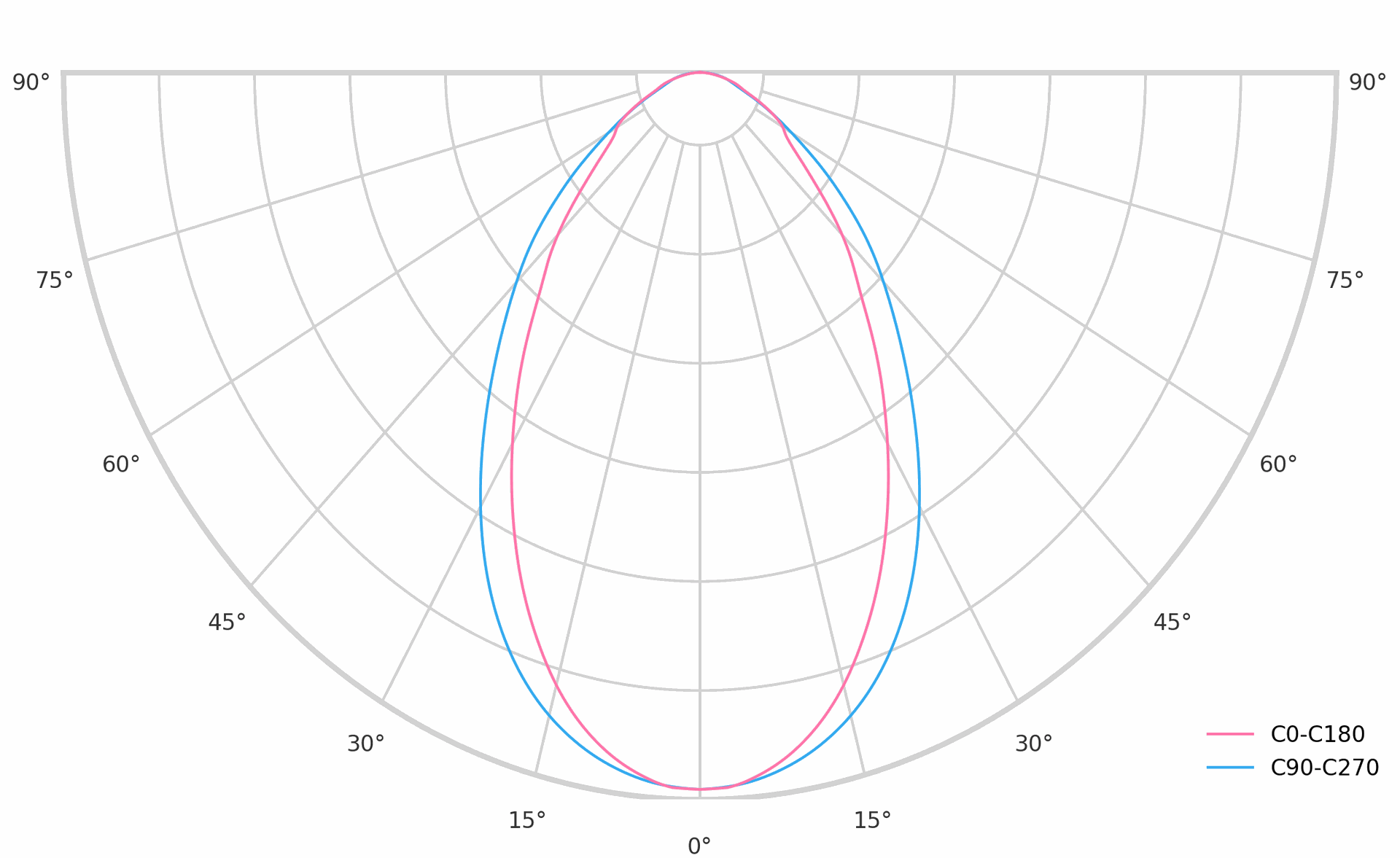

Dimmensions and light distribution
