LUKA-M-740-1-C13300
Technical specifications
Light Source
LED
CCT
4000k
CRI
70
Switching type
Non-dimmable
Connected load
36,13 W
Lumen output
4 639,80 lm
Efficiency
128,4 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
Connection cable
Switching type
Non-dimmable
IP protection
66
Protection class
I
Ambient temperature
-40 to +40 °C
Light Source
LED
CCT
4000k
CRI
70
Connected load
36,13 W
Lumen output
4 639,80 lm
Efficiency
128,4 lm/W
Ripple
3 %
Inrush current
46 A
Inrush time
728 μs
Optical system
Optika
Optical part material
Tvrdené sklo
Housing material
Hliníkový odliatok
Surface finish
Prášková farba
Width
173,00 mm
Height
69,00 mm
Length
342,00 mm
Weight
5,00 kg
Service lifetime (L80 B10)
>100 000 h
Warranty
5 rokov

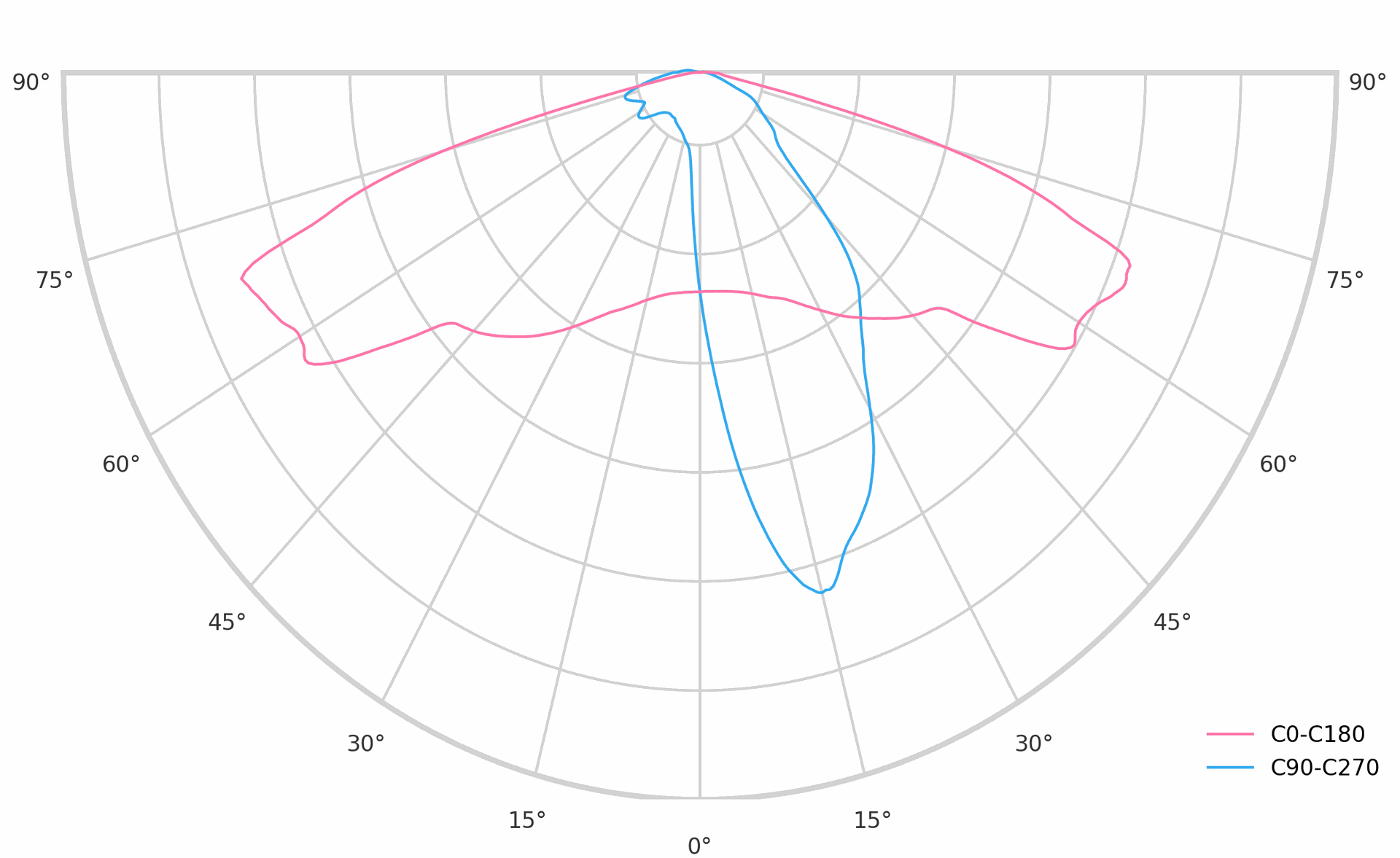

Dimmensions and light distribution
