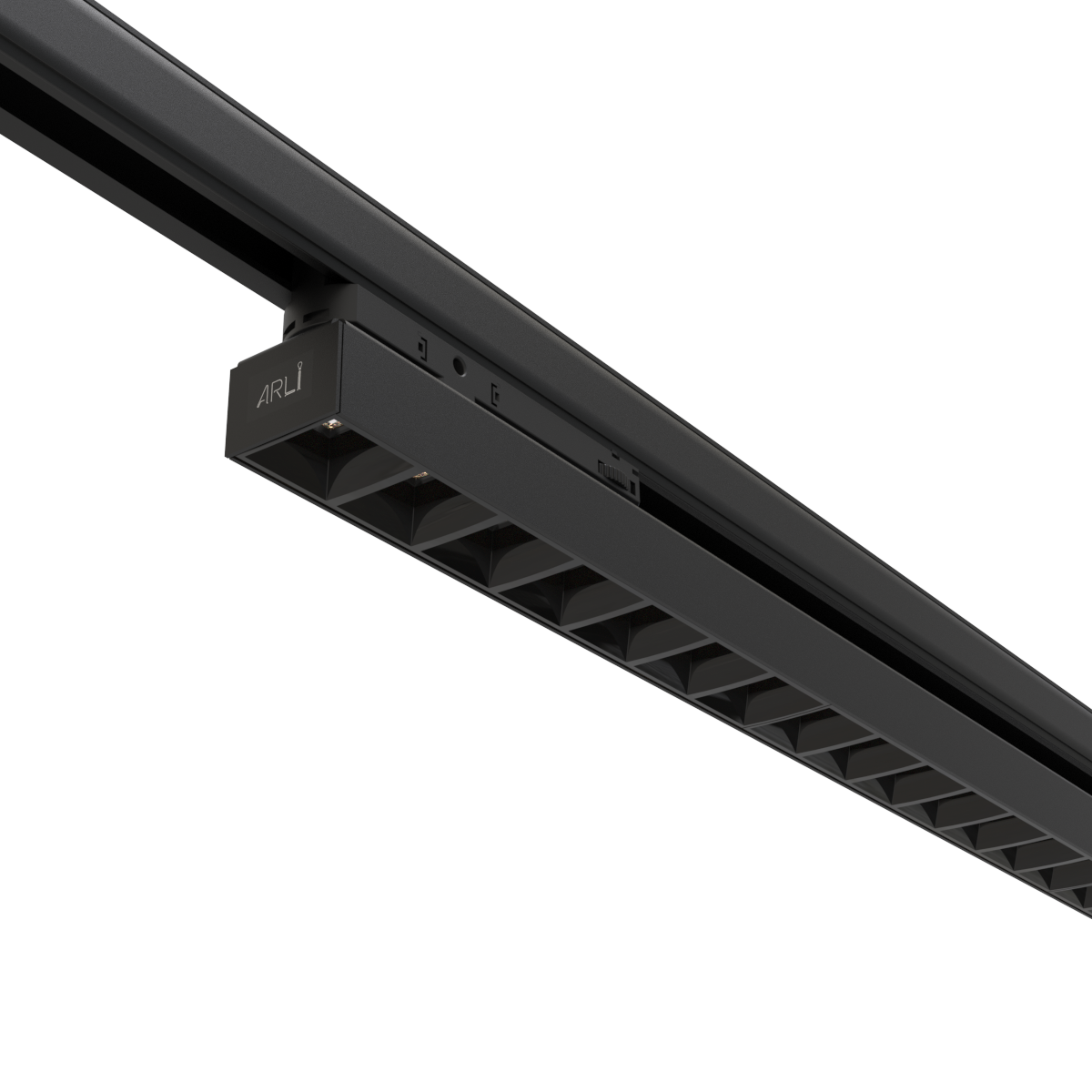

WORT-M-940-1-SYM-BL
Technical specifications
Light Source
LED
CCT
4000k
CRI
90
Switching type
Non-dimmable
Connected load
33,28 W
Lumen output
3 218,40 lm
Efficiency
96,7 lm/W
Technical data
Mains voltage
220 - 240V AC, 50/60Hz
Connection method
3- fázový adaptér
Switching type
Non-dimmable
IP protection
20
Protection class
II
Ambient temperature
0 to +25 °C
Light Source
LED
CCT
4000k
CRI
90
Connected load
33,28 W
Lumen output
3 218,40 lm
Efficiency
96,7 lm/W
Ripple
5 %
Inrush current
7 A
Inrush time
28 μs
Optical system
Optika
Optical part material
PMMA
Housing material
Hliník
Surface finish
Prášková farba
Width
44,00 mm
Height
53,00 mm
Length
1 122,00 mm
Weight
2,80 kg
Service lifetime (L80 B10)
50 000 h
Warranty
5 rokov
Kalkulačka osvetlenia
Housing color

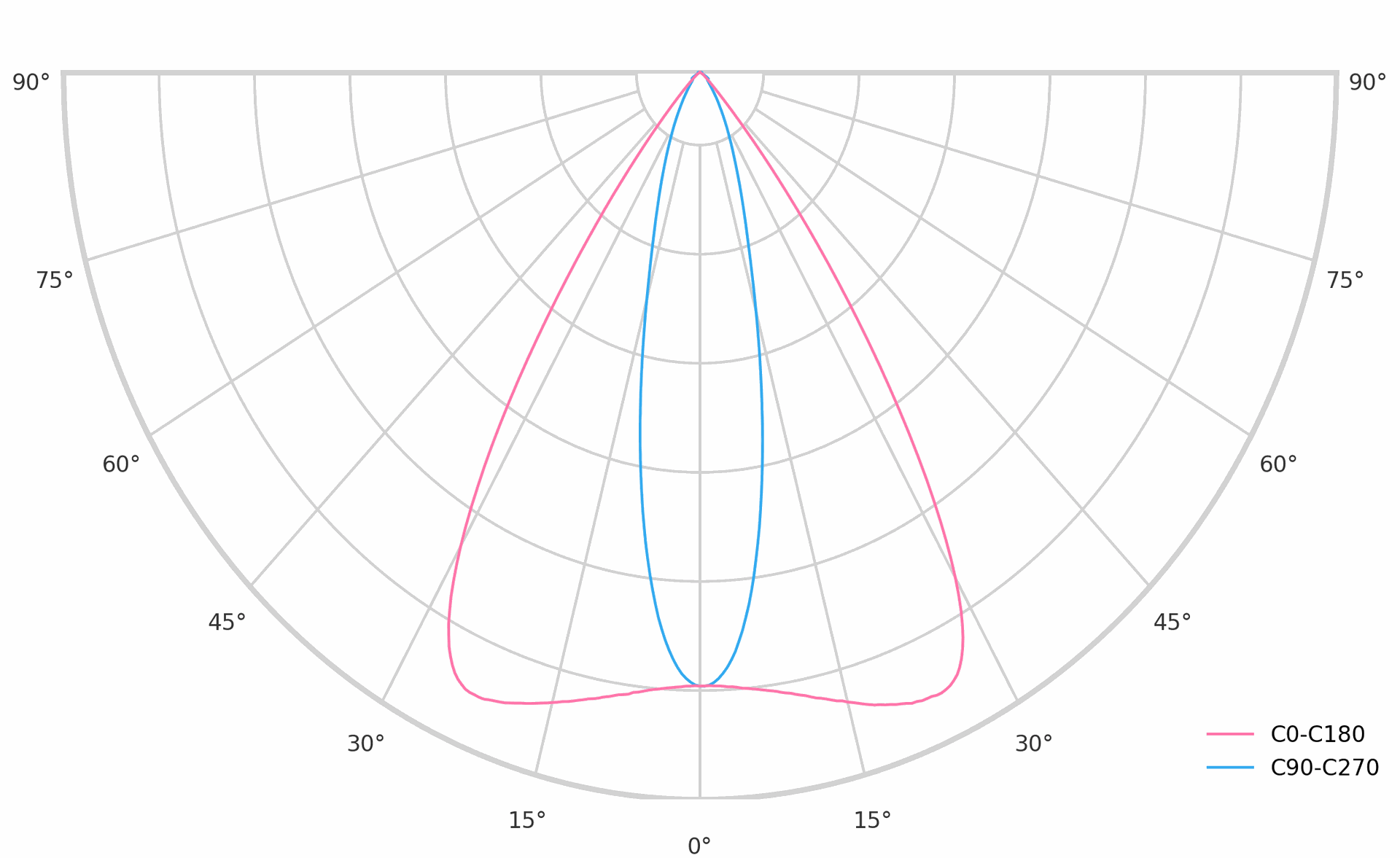

Dimmensions and light distribution
